Spherical roller bearings 22236-2CS5K/VT143

Bearing number : 22236-2CS5K/VT143

Size (mm) : 180x320x86

Brand : SKF

Bore Diameter (mm) : 180

Outer Diameter (mm) : 320

Width (mm) : 86

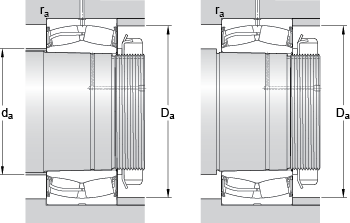

Bearing dimensions and specification in SKF catalogue:

d - 180 mm

D - 320 mm

B - 86 mm

d2 - - 208 mm

D1 - - 289 mm

b - 16.7 mm

K - 9 mm

r1,2 - min. - 4 mm

da - min. - 189 mm

da - max. - 208 mm

Da - max. - 303 mm

ra - max. - 3 mm

Basic dynamic load rating - C - 1239 kN

Basic static load rating - C0 - 1560 kN

Fatigue load limit - Pu - 140 kN

Limiting speed - 530 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Calculation factor - Y0 - 2.8

Weight - 28.4 kg
