Spherical roller bearings 22232-2CS5K/VT143

Bearing number : 22232-2CS5K/VT143

Size (mm) : 160x290x80

Brand : SKF

Bore Diameter (mm) : 160

Outer Diameter (mm) : 290

Width (mm) : 80

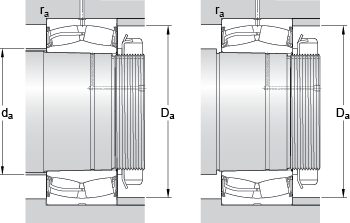

Bearing dimensions and specification in SKF catalogue:

d - 160 mm

D - 290 mm

B - 80 mm

d2 - - 185 mm

D1 - - 264 mm

b - 13.9 mm

K - 7.5 mm

r1,2 - min. - 3 mm

da - min. - 168 mm

da - max. - 185 mm

Da - max. - 276 mm

ra - max. - 2.5 mm

Basic dynamic load rating - C - 1044 kN

Basic static load rating - C0 - 1290 kN

Fatigue load limit - Pu - 118 kN

Limiting speed - 600 r/min

Calculation factor - e - 0.25

Calculation factor - Y1 - 2.7

Calculation factor - Y2 - 4

Calculation factor - Y0 - 2.5

Weight - 22 kg
