Spherical roller bearings 22230-2CS5K/VT143

Bearing number : 22230-2CS5K/VT143

Size (mm) : 150x270x73

Brand : SKF

Bore Diameter (mm) : 150

Outer Diameter (mm) : 270

Width (mm) : 73

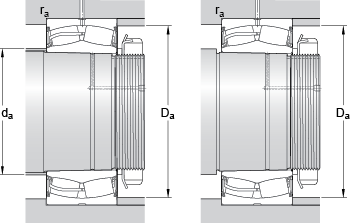

Bearing dimensions and specification in SKF catalogue:

d - 150 mm

D - 270 mm

B - 73 mm

d2 - - 174 mm

D1 - - 248 mm

b - 13.9 mm

K - 7.5 mm

r1,2 - min. - 3 mm

da - min. - 158 mm

da - max. - 174 mm

Da - max. - 256 mm

ra - max. - 2.5 mm

Basic dynamic load rating - C - 899 kN

Basic static load rating - C0 - 1080 kN

Fatigue load limit - Pu - 102 kN

Limiting speed - 630 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Calculation factor - Y0 - 2.8

Weight - 17.5 kg
