Bearing number : 22224 EK
Size (mm) : 120x215x58
Brand : SKF
Bore Diameter (mm) : 120
Outer Diameter (mm) : 215
Width (mm) : 58
d - 120 mm
D - 215 mm
B - 58 mm
d2 - - 141 mm
D1 - - 189 mm
b - 11.1 mm
K - 6 mm
r1,2 - min. - 2.1 mm

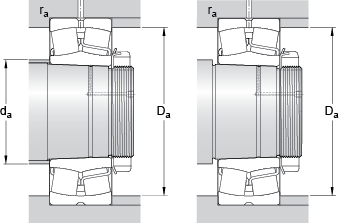

da - min. - 128 mm
da - max. - 141 mm
Da - max. - 203 mm
ra - max. - 2 mm
Basic dynamic load rating - C - 652 kN
Basic static load rating - C0 - 765 kN
Fatigue load limit - Pu - 73.5 kN
Reference speed - 2800 r/min
Limiting speed - 3800 r/min
Calculation factor - e - 0.26
Calculation factor - Y1 - 2.6
Calculation factor - Y2 - 3.9
Calculation factor - Y0 - 2.5
Weight - 8.5 kg
