Deep groove ball bearings YET209-112

Bearing number : YET209-112

Size (mm) : 44.45x85x30.2

Brand : SKF

Bore Diameter (mm) : 44,45

Outer Diameter (mm) : 85

Width (mm) : 30,2

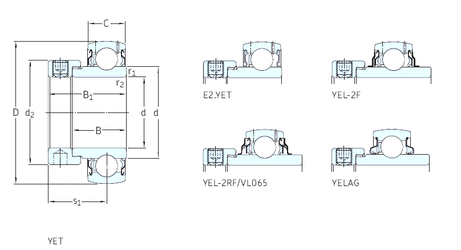

Bearing dimensions and specification in SKF catalogue:

d - 44,45 mm

D - 85 mm

B - 30,2 mm

B1 - 43,7 mm

C - 22 mm

d1 - 56,8 mm

d2 - 62 mm

r1 min. - 1 mm

r2 min. - 1 mm

s1 - 32,7 mm

Weight - 0,7 Kg

Basic dynamic load rating (C) - 33,2 kN

Basic static load rating (C0) - 21,6 kN

Fatigue load limit (Pu) - 0,915

Limiting speed - 4300 r/min
