Bearing number : YET204/VL065
Size (mm) : 20x47x21.5
Brand : SKF
Bore Diameter (mm) : 20
Outer Diameter (mm) : 47
Width (mm) : 21,5

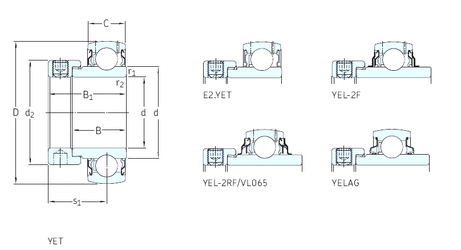

d - 20 mm
D - 47 mm
B - 21,5 mm
B1 - 31 mm
C - 14 mm
d1 - 28,2 mm
d2 - 32,4 mm
r1 min. - 0,6 mm
r2 min. - 0,6 mm
s1 - 24 mm
Weight - 0,18 Kg
Basic dynamic load rating (C) - 12,7 kN
Basic static load rating (C0) - 6,55 kN
Fatigue load limit (Pu) - 0,28
Limiting speed - 8500 r/min
