Bearing number : YAT208-108
Size (mm) : 38.1x80x40
Brand : SKF
Bore Diameter (mm) : 38,1
Outer Diameter (mm) : 80
Width (mm) : 40

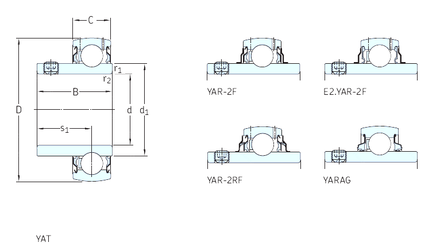

d - 38,1 mm
D - 80 mm
B - 40 mm
C - 21 mm
d1 - 51,8 mm
r1 min. - 1 mm
r2 min. - 1 mm
s1 - 28,5 mm
Weight - 0,58 Kg
Basic dynamic load rating (C) - 30,7 kN
Basic static load rating (C0) - 19 kN
Fatigue load limit (Pu) - 0,8
Limiting speed - 4800 r/min
