Deep groove ball bearings YAT204

Bearing number : YAT204

Size (mm) : 20x47x25.5

Brand : SKF

Bore Diameter (mm) : 20

Outer Diameter (mm) : 47

Width (mm) : 25,5

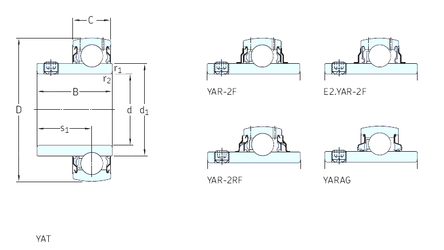

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

D - 47 mm

B - 25,5 mm

C - 14 mm

d1 - 28,2 mm

r1 min. - 0,6 mm

r2 min. - 0,6 mm

s1 - 18,3 mm

Weight - 0,11 Kg

Basic dynamic load rating (C) - 12,7 kN

Basic static load rating (C0) - 6,55 kN

Fatigue load limit (Pu) - 0,28

Limiting speed - 8500 r/min
