Deep groove ball bearings YAT203-010

Bearing number : YAT203-010

Size (mm) : 15.875x40x22.5

Brand : SKF

Bore Diameter (mm) : 15,875

Outer Diameter (mm) : 40

Width (mm) : 22,5

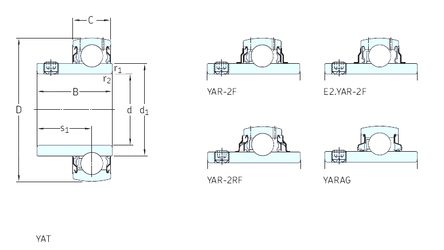

Bearing dimensions and specification in SKF catalogue:

d - 15,875 mm

D - 40 mm

B - 22,5 mm

C - 12 mm

d1 - 24,2 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

s1 - 16 mm

Weight - 0,1 Kg

Basic dynamic load rating (C) - 9,56 kN

Basic static load rating (C0) - 4,75 kN

Fatigue load limit (Pu) - 0,2

Limiting speed - 9500 r/min
