Deep groove ball bearings YARAG210-115

Bearing number : YARAG210-115

Size (mm) : 49.213x90x51.6

Brand : SKF

Bore Diameter (mm) : 49,213

Outer Diameter (mm) : 90

Width (mm) : 51,6

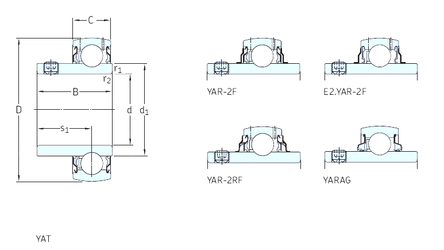

Bearing dimensions and specification in SKF catalogue:

d - 49,213 mm

D - 90 mm

B - 51,6 mm

C - 22 mm

d1 - 62,5 mm

r1 min. - 1 mm

r2 min. - 1 mm

s1 - 32,6 mm

Weight - 0,77 Kg

Basic dynamic load rating (C) - 35,1 kN

Basic static load rating (C0) - 23,2 kN

Fatigue load limit (Pu) - 0,98

Limiting speed - 800 r/min
