Deep groove ball bearings YAR220-2F

Bearing number : YAR220-2F

Size (mm) : 100x180x98.4

Brand : SKF

Bore Diameter (mm) : 100

Outer Diameter (mm) : 180

Width (mm) : 98,4

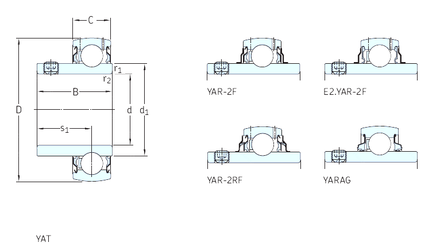

Bearing dimensions and specification in SKF catalogue:

d - 100 mm

D - 180 mm

B - 98,4 mm

C - 40 mm

d1 - 124 mm

r1 min. - 2 mm

r2 min. - 2 mm

s1 - 63,4 mm

Weight - 5,35 Kg

Basic dynamic load rating (C) - 124 kN

Basic static load rating (C0) - 93 kN

Fatigue load limit (Pu) - 3,35

Limiting speed - 1900 r/min
