Deep groove ball bearings YAR211-200-2F

Bearing number : YAR211-200-2F

Size (mm) : 50.8x100x55.6

Brand : SKF

Bore Diameter (mm) : 50,8

Outer Diameter (mm) : 100

Width (mm) : 55,6

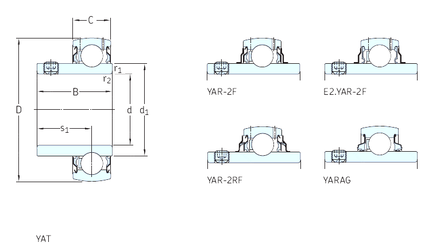

Bearing dimensions and specification in SKF catalogue:

d - 50,8 mm

D - 100 mm

B - 55,6 mm

C - 25 mm

d1 - 69 mm

r1 min. - 1 mm

r2 min. - 1 mm

s1 - 33,4 mm

Weight - 1,1 Kg

Basic dynamic load rating (C) - 43,6 kN

Basic static load rating (C0) - 29 kN

Fatigue load limit (Pu) - 1,25

Limiting speed - 3600 r/min
