Bearing number : YAR206-104-2F
Size (mm) : 62x31.75x38,1
Brand : SKF
Bore Diameter (mm) : 62
Outer Diameter (mm) : 31.75
Width (mm) : 38,1

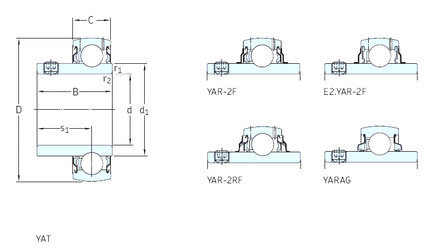

d - 31.75 mm
D - 62 mm
B - 38,1 mm
C - 18 mm
d1 - 39,7 mm
r1 min. - 0,6 mm
r2 min. - 0,6 mm
s1 - 22,2 mm
Weight - 0,28 Kg
Basic dynamic load rating (C) - 19,5 kN
Basic static load rating (C0) - 11,2 kN
Fatigue load limit (Pu) - 0,475
Limiting speed - 6300 r/min
