Deep groove ball bearings YAR205-2F

Bearing number : YAR205-2F

Size (mm) : 25x52x34.1

Brand : SKF

Bore Diameter (mm) : 25

Outer Diameter (mm) : 52

Width (mm) : 34,1

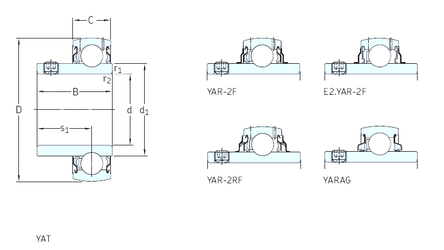

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

D - 52 mm

B - 34,1 mm

C - 15 mm

d1 - 33,7 mm

r1 min. - 0,6 mm

r2 min. - 0,6 mm

s1 - 19,8 mm

Weight - 0,17 Kg

Basic dynamic load rating (C) - 14 kN

Basic static load rating (C0) - 7,8 kN

Fatigue load limit (Pu) - 0,335

Limiting speed - 7000 r/min
