Deep groove ball bearings W636

Bearing number : W636

Size (mm) : 6x22x7

Brand : SKF

Bore Diameter (mm) : 6

Outer Diameter (mm) : 22

Width (mm) : 7

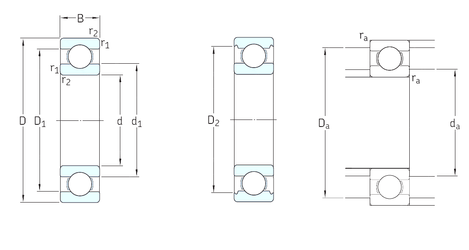

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

D - 22 mm

B - 7 mm

C - 7 mm

d1 - – mm

d2 - 10,5 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

D1 - 18,1 mm

D2 - 19,1 mm

da min. - 8 mm

Da max. - 20 mm

ra max. - 0,3 mm

Weight - 0,012 Kg

Basic dynamic load rating (C) - 2,34 kN

Basic static load rating (C0) - 0,8 kN

Fatigue load limit (Pu) - 0,034

Reference speed - 75000 r/min

Limiting speed - 48000 r/min

Calculation factor (f0) - 7,2

Calculation factor (kr) - 0,035
