Deep groove ball bearings W635-2RS1

Bearing number : W635-2RS1

Size (mm) : 5x19x6

Brand : SKF

Bore Diameter (mm) : 5

Outer Diameter (mm) : 19

Width (mm) : 6

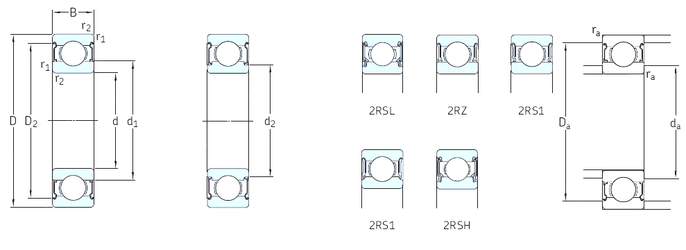

Bearing dimensions and specification in SKF catalogue:

d - 5 mm

D - 19 mm

B - 6 mm

C - 6 mm

d1 - – mm

d2 - 8,5 mm

r1 min. - 7 mm

r2 min. - 7 mm

D1 - 16,5 mm

D2 - 0,3 mm

da min. - 8,4 mm

Da max. - 17 mm

ra max. - 0,3 mm

Weight - 0,008 Kg

Basic dynamic load rating (C) - 2,34 kN

Basic static load rating (C0) - 0,88 kN

Fatigue load limit (Pu) - 0,038

Reference speed - – r/min

Limiting speed - 24000 r/min

Calculation factor (f0) - 12

Calculation factor (kr) - 0,035
