Deep groove ball bearings W628/6-2RS1

Bearing number : W628/6-2RS1

Size (mm) : 6x13x5

Brand : SKF

Bore Diameter (mm) : 6

Outer Diameter (mm) : 13

Width (mm) : 5

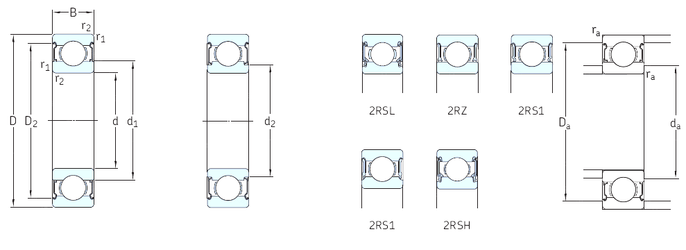

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

D - 13 mm

B - 5 mm

C - 5 mm

d1 - – mm

d2 - 7,4 mm

r1 min. - 7,2 mm

r2 min. - 7,2 mm

D1 - 11,7 mm

D2 - 0,15 mm

da min. - 7,3 mm

Da max. - 11,8 mm

ra max. - 0,15 mm

Weight - 0,0025 Kg

Basic dynamic load rating (C) - 0,618 kN

Basic static load rating (C0) - 0,224 kN

Fatigue load limit (Pu) - 0,01

Reference speed - – r/min

Limiting speed - 30000 r/min

Calculation factor (f0) - 7

Calculation factor (kr) - 0,02
