Bearing W628/5-2RS1

Deep groove ball bearings W628/5-2RS1

Bearing number : W628/5-2RS1

Size (mm) : 5x11x4

Brand : SKF

Bore Diameter (mm) : 5

Outer Diameter (mm) : 11

Width (mm) : 4

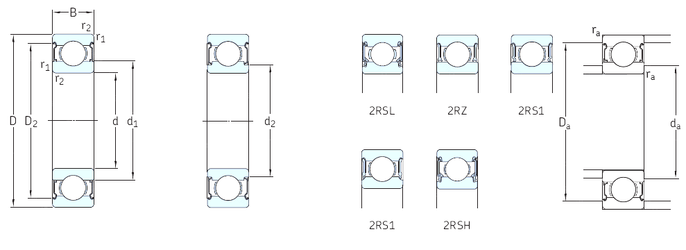

Bearing dimensions and specification in SKF catalogue:


d - 5 mm

D - 11 mm

B - 4 mm

C - 4 mm

d1 - 6,8 mm

d2 - – mm

r1 min. - 6,2 mm

r2 min. - 6,2 mm

D1 - 9,9 mm

D2 - 0,15 mm

da min. - 6,7 mm

Da max. - 10 mm

ra max. - 0,15 mm

Weight - 0,0018 Kg

Basic dynamic load rating (C) - 0,403 kN

Basic static load rating (C0) - 0,143 kN

Fatigue load limit (Pu) - 0,006

Reference speed - – r/min

Limiting speed - 34000 r/min

Calculation factor (f0) - 7,1

Calculation factor (kr) - 0,02
