Deep groove ball bearings W627/5-2ZS

Bearing number : W627/5-2ZS

Size (mm) : 5x8x2.5

Brand : SKF

Bore Diameter (mm) : 5

Outer Diameter (mm) : 8

Width (mm) : 2,5

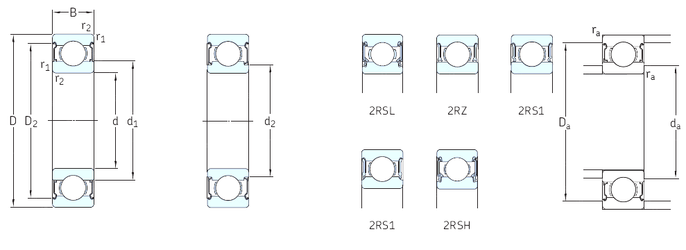

Bearing dimensions and specification in SKF catalogue:

d - 5 mm

D - 8 mm

B - 2,5 mm

C - 2,5 mm

d1 - 5,8 mm

d2 - – mm

r1 min. - 5,6 mm

r2 min. - 5,6 mm

D1 - 7,4 mm

D2 - 0,1 mm

da min. - 5,7 mm

Da max. - 7,5 mm

ra max. - 0,1 mm

Weight - 0,0004 Kg

Basic dynamic load rating (C) - 0,14 kN

Basic static load rating (C0) - 0,045 kN

Fatigue load limit (Pu) - 0,002

Reference speed - 140000 r/min

Limiting speed - 70000 r/min

Calculation factor (f0) - 7,8

Calculation factor (kr) - 0,015
