Deep groove ball bearings W626-2Z

Bearing number : W626-2Z

Size (mm) : 6x19x6

Brand : SKF

Bore Diameter (mm) : 6

Outer Diameter (mm) : 19

Width (mm) : 6

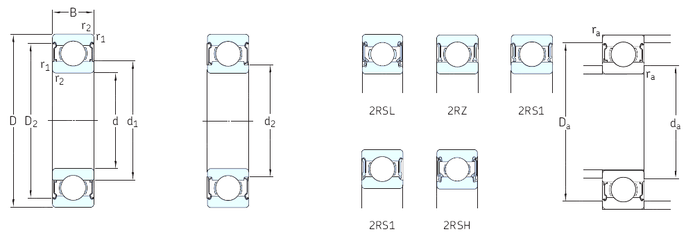

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

D - 19 mm

B - 6 mm

C - 6 mm

d1 - – mm

d2 - 8,5 mm

r1 min. - 8 mm

r2 min. - 8 mm

D1 - 16,5 mm

D2 - 0,3 mm

da min. - 8,4 mm

Da max. - 17 mm

ra max. - 0,3 mm

Weight - 0,0078 Kg

Basic dynamic load rating (C) - 1,53 kN

Basic static load rating (C0) - 0,585 kN

Fatigue load limit (Pu) - 0,025

Reference speed - 85000 r/min

Limiting speed - 43000 r/min

Calculation factor (f0) - 7,9

Calculation factor (kr) - 0,03
