Deep groove ball bearings W625

Bearing number : W625

Size (mm) : 5x16x5

Brand : SKF

Bore Diameter (mm) : 5

Outer Diameter (mm) : 16

Width (mm) : 5

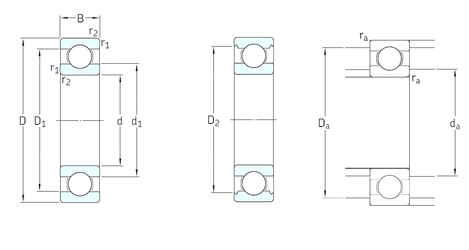

Bearing dimensions and specification in SKF catalogue:

d - 5 mm

D - 16 mm

B - 5 mm

C - 5 mm

d1 - – mm

d2 - 7,5 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

D1 - 12,5 mm

D2 - 13,4 mm

da min. - 7 mm

Da max. - 14 mm

ra max. - 0,3 mm

Weight - 0,0046 Kg

Basic dynamic load rating (C) - 1,43 kN

Basic static load rating (C0) - 0,63 kN

Fatigue load limit (Pu) - 0,027

Reference speed - 100000 r/min

Limiting speed - 63000 r/min

Calculation factor (f0) - 12

Calculation factor (kr) - 0,03
