Deep groove ball bearings W619/3

Bearing number : W619/3

Size (mm) : 3x8x3

Brand : SKF

Bore Diameter (mm) : 3

Outer Diameter (mm) : 8

Width (mm) : 3

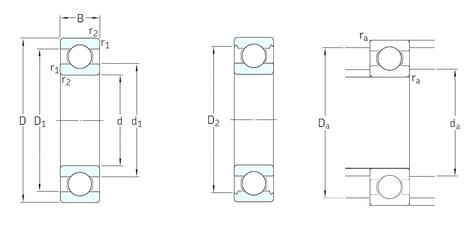

Bearing dimensions and specification in SKF catalogue:

d - 3 mm

D - 8 mm

B - 3 mm

C - 3 mm

d1 - 4,3 mm

d2 - – mm

r1 min. - 0,15 mm

r2 min. - 0,15 mm

D1 - 6,7 mm

D2 - – mm

da min. - 4,2 mm

Da max. - 6,8 mm

ra max. - 0,15 mm

Weight - 0,0007 Kg

Basic dynamic load rating (C) - 0,319 kN

Basic static load rating (C0) - 0,09 kN

Fatigue load limit (Pu) - 0,004

Reference speed - 150000 r/min

Limiting speed - 95000 r/min

Calculation factor (f0) - 6,1

Calculation factor (kr) - 0,025
