Deep groove ball bearings W618/6

Bearing number : W618/6

Size (mm) : 6x13x3.5

Brand : SKF

Bore Diameter (mm) : 6

Outer Diameter (mm) : 13

Width (mm) : 3,5

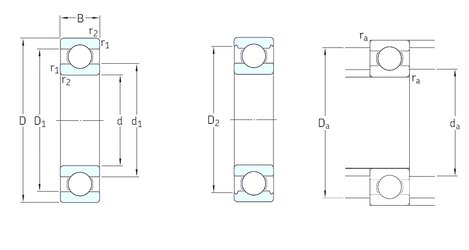

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

D - 13 mm

B - 3,5 mm

C - 3,5 mm

d1 - 8 mm

d2 - – mm

r1 min. - 0,15 mm

r2 min. - 0,15 mm

D1 - 11 mm

D2 - – mm

da min. - 7,2 mm

Da max. - 11,8 mm

ra max. - 0,15 mm

Weight - 0,0019 Kg

Basic dynamic load rating (C) - 0,618 kN

Basic static load rating (C0) - 0,224 kN

Fatigue load limit (Pu) - 0,01

Reference speed - 110000 r/min

Limiting speed - 67000 r/min

Calculation factor (f0) - 7

Calculation factor (kr) - 0,02
