Deep groove ball bearings W606

Bearing number : W606

Size (mm) : 6x17x6

Brand : SKF

Bore Diameter (mm) : 6

Outer Diameter (mm) : 17

Width (mm) : 6

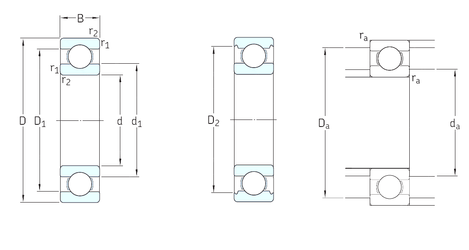

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

D - 17 mm

B - 6 mm

C - 6 mm

d1 - – mm

d2 - 8,2 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

D1 - 13,8 mm

D2 - 14,8 mm

da min. - 8 mm

Da max. - 15 mm

ra max. - 0,3 mm

Weight - 0,0055 Kg

Basic dynamic load rating (C) - 1,95 kN

Basic static load rating (C0) - 0,83 kN

Fatigue load limit (Pu) - 0,036

Reference speed - 95000 r/min

Limiting speed - 60000 r/min

Calculation factor (f0) - 11

Calculation factor (kr) - 0,03
