Deep groove ball bearings W60/2.5

Bearing number : W60/2.5

Size (mm) : 2.5x8x2.8

Brand : SKF

Bore Diameter (mm) : 2,5

Outer Diameter (mm) : 8

Width (mm) : 2,8

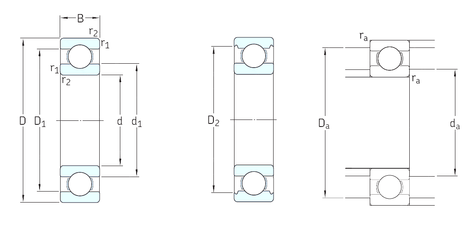

Bearing dimensions and specification in SKF catalogue:

d - 2,5 mm

D - 8 mm

B - 2,8 mm

C - 2,8 mm

d1 - 4,1 mm

d2 - – mm

r1 min. - 0,15 mm

r2 min. - 0,15 mm

D1 - 6,4 mm

D2 - – mm

da min. - 3,7 mm

Da max. - 6,8 mm

ra max. - 0,15 mm

Weight - 0,0006 Kg

Basic dynamic load rating (C) - 0,312 kN

Basic static load rating (C0) - 0,088 kN

Fatigue load limit (Pu) - 0,004

Reference speed - 160000 r/min

Limiting speed - 95000 r/min

Calculation factor (f0) - 5,9

Calculation factor (kr) - 0,03
