Bearing TUJ 60 TF Bearing TUJ 60 TF

Y-bearings take-up units TUJ 60 TF

Bearing number : TUJ 60 TF

Size (mm) : 60x60x22

Brand : SKF

Bore Diameter (mm) : 60

Outer Diameter (mm) : 60

Width (mm) : 22

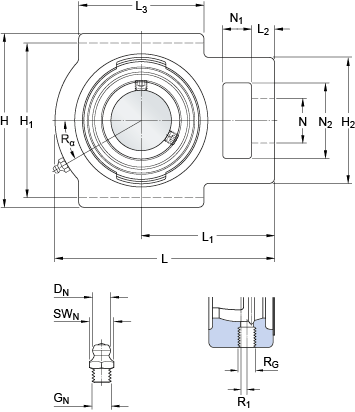

Bearing dimensions and specification in SKF catalogue:


d - 60 mm

A - 60 mm

A1 - 22 mm

A2 - 44 mm

B - 65.1 mm

H - 146 mm

H1 - 130 mm

H2 - 102 mm

L - 186 mm

L1 - 118 mm

L2 - 19 mm

L3 - 100 mm

H - 35 mm

N1 - 32 mm

N2 - 63.5 mm

s1 - 39.7 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 5.5 mm

Rα - 30 °

Basic dynamic load rating - C - 52.7 kN

Basic static load rating - C0 - 36 kN

Fatigue load limit - Pu - 1.5 kN

Limiting speed with shaft tolerance h6 - 3400 r/min

Mass bearing unit - 4.45 kg

Grub (set) screw - G2 - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

Housing -
