Y-bearings take-up units TUJ 30 TF

Bearing number : TUJ 30 TF

Size (mm) : 30x37x12

Brand : SKF

Bore Diameter (mm) : 30

Outer Diameter (mm) : 37

Width (mm) : 12

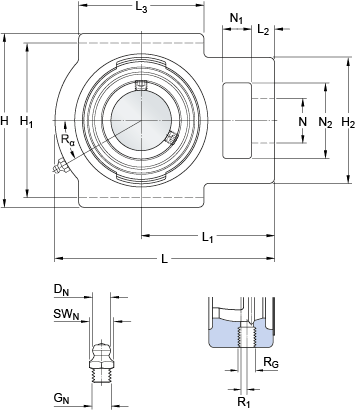

Bearing dimensions and specification in SKF catalogue:

d - 30 mm

A - 37 mm

A1 - 12 mm

A2 - 28 mm

B - 38.1 mm

H - 104 mm

H1 - 89 mm

H2 - 56 mm

L - 114 mm

L1 - 70 mm

L2 - 10 mm

L3 - 57 mm

H - 22 mm

N1 - 16 mm

N2 - 37 mm

s1 - 22.2 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3.5 mm

Rα - 30 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C0 - 11.2 kN

Fatigue load limit - Pu - 0.475 kN

Limiting speed with shaft tolerance h6 - 6300 r/min

Mass bearing unit - 1.2 kg

Grub (set) screw - G2 - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing -
