Y-bearings take-up units TU 50 FM

Bearing number : TU 50 FM

Size (mm) : 49x50x17,5

Brand : SKF

Bore Diameter (mm) : 49

Outer Diameter (mm) : 50

Width (mm) : 17,5

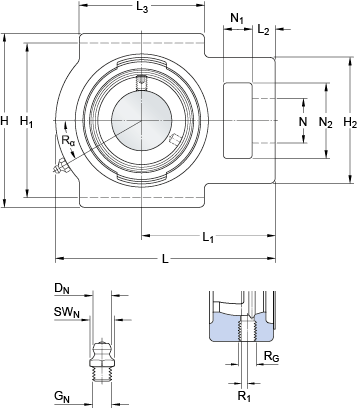

Bearing dimensions and specification in SKF catalogue:

d - 50 mm

A - 49 mm

A1 - 17.5 mm

A2 - 36 mm

A5 - 29.5 mm

B - 30.2 mm

H - 117 mm

H1 - 101 mm

H2 - 83 mm

L - 149 mm

L1 - 90 mm

L2 - 16 mm

L3 - 86 mm

H - 29 mm

N1 - 19 mm

N2 - 49 mm

s1 - 32.7 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 4 mm

Rα - 30 °

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C0 - 23.2 kN

Fatigue load limit - Pu - 0.98 kN

Limiting speed with shaft tolerance h6 - 4000 r/min

Mass bearing unit - 2.35 kg

Grub (set) screw - G2 - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

Housing -
