Tapered roller bearings T7FC075/QCL7C

Bearing number : T7FC075/QCL7C

Size (mm) : 75x150x42

Brand : SKF

Bore Diameter (mm) : 75

Outer Diameter (mm) : 150

Width (mm) : 42

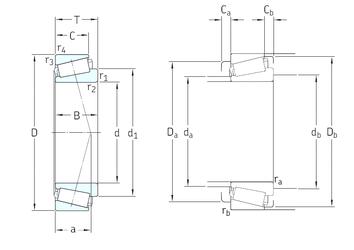

Bearing dimensions and specification in SKF catalogue:

d - 75 mm

D - 150 mm

T - 42 mm

B - 38 mm

C - 29 mm

a - 50 mm

d1 - 116 mm

r1 min. - 3 mm

r2 min. - 3 mm

r3 min. - 3 mm

r4 min. - 3 mm

Ca min. - 5 mm

Cb min. - 13 mm

da max - 88 mm

Da min - 114 mm

Da max. - 136 mm

db min - 87 mm

Db min. - 143 mm

ra max. - 2,5 mm

rb max. - 2,5 mm

Weight - 3,25 Kg

Basic dynamic load rating (C) - 201 kN

Basic static load rating (C0) - 280 kN

Fatigue load limit (Pu) - 31

Reference speed - 3000 r/min

Limiting speed - 4300 r/min

Calculation factor (e) - 0,88

Calculation factor (Y) - 0,68

Calculation factor (Y0) - 0,4
