Tapered roller bearings T7FC065/QCL7C

Bearing number : T7FC065/QCL7C

Size (mm) : 65x130x37

Brand : SKF

Bore Diameter (mm) : 65

Outer Diameter (mm) : 130

Width (mm) : 37

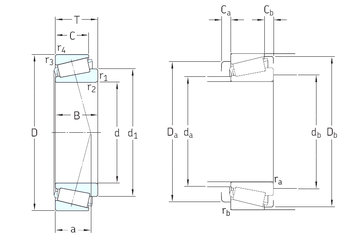

Bearing dimensions and specification in SKF catalogue:

d - 65 mm

D - 130 mm

T - 37 mm

B - 33,5 mm

C - 26 mm

a - 44 mm

d1 - 102 mm

r1 min. - 3 mm

r2 min. - 3 mm

r3 min. - 3 mm

r4 min. - 3 mm

Ca min. - 4 mm

Cb min. - 11 mm

da max - 77 mm

Da min - 98 mm

Da max. - 116 mm

db min - 77 mm

Db min. - 124 mm

ra max. - 2,5 mm

rb max. - 2,5 mm

Weight - 2,2 Kg

Basic dynamic load rating (C) - 157 kN

Basic static load rating (C0) - 216 kN

Fatigue load limit (Pu) - 25,5

Reference speed - 3400 r/min

Limiting speed - 5000 r/min

Calculation factor (e) - 0,88

Calculation factor (Y) - 0,68

Calculation factor (Y0) - 0,4
