Tapered roller bearings T7FC050/QCL7C

Bearing number : T7FC050/QCL7C

Size (mm) : 50x105x32

Brand : SKF

Bore Diameter (mm) : 50

Outer Diameter (mm) : 105

Width (mm) : 32

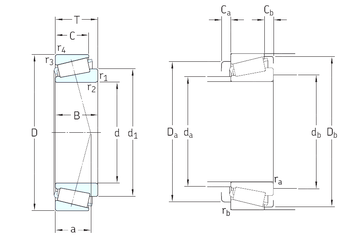

Bearing dimensions and specification in SKF catalogue:

d - 50 mm

D - 105 mm

T - 32 mm

B - 29 mm

C - 22 mm

a - 36 mm

d1 - 81,3 mm

r1 min. - 3 mm

r2 min. - 3 mm

r3 min. - 3 mm

r4 min. - 3 mm

Ca min. - 4 mm

Cb min. - 10 mm

da max - 60 mm

Da min - 78 mm

Da max. - 91 mm

db min - 62 mm

Db min. - 100 mm

ra max. - 2,5 mm

rb max. - 2,5 mm

Weight - 1,25 Kg

Basic dynamic load rating (C) - 108 kN

Basic static load rating (C0) - 137 kN

Fatigue load limit (Pu) - 16

Reference speed - 4300 r/min

Limiting speed - 6300 r/min

Calculation factor (e) - 0,88

Calculation factor (Y) - 0,68

Calculation factor (Y0) - 0,4
