Tapered roller bearings T2ED050/Q

Bearing number : T2ED050/Q

Size (mm) : 50x100x36

Brand : SKF

Bore Diameter (mm) : 50

Outer Diameter (mm) : 100

Width (mm) : 36

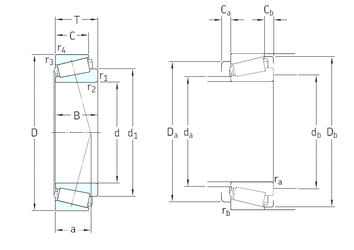

Bearing dimensions and specification in SKF catalogue:

d - 50 mm

D - 100 mm

T - 36 mm

B - 35 mm

C - 30 mm

a - 25 mm

d1 - 73,5 mm

r1 min. - 2,5 mm

r2 min. - 2,5 mm

r3 min. - 2,5 mm

r4 min. - 2,5 mm

Ca min. - 6 mm

Cb min. - 6 mm

da max - 59 mm

Da min - 84 mm

Da max. - 88 mm

db min - 60 mm

Db min. - 94 mm

ra max. - 2,5 mm

rb max. - 2,5 mm

Weight - 1,3 Kg

Basic dynamic load rating (C) - 154 kN

Basic static load rating (C0) - 200 kN

Fatigue load limit (Pu) - 22,4

Reference speed - 5000 r/min

Limiting speed - 7500 r/min

Calculation factor (e) - 0,35

Calculation factor (Y) - 1,7

Calculation factor (Y0) - 0,9
