Y-bearing plummer block units SYWR 25 YTHR

Bearing number : SYWR 25 YTHR

Size (mm) : 25x37x25

Brand : SKF

Bore Diameter (mm) : 25

Outer Diameter (mm) : 37

Width (mm) : 25

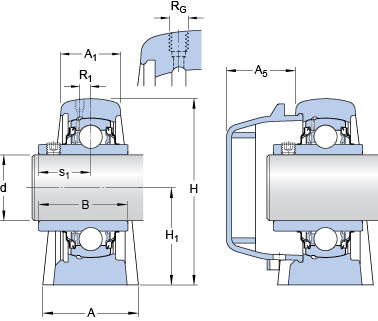

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

A - 37 mm

A1 - 25 mm

A5 - 25.2 mm

B - 34.1 mm

H - 70 mm

H1 - 36.5 mm

H2 - 16 mm

J - 102 mm

J - max. - 110 mm

J - min. - 94 mm

L - 133.5 mm

H - 19.5 mm

N1 - 11.5 mm

s1 - 19.8 mm

RG - 1/4-28 UNF

R1 - 1.5 mm

Rα - 45 °

Basic dynamic load rating - C - 11.9 kN

Basic static load rating - C0 - 7.8 kN

Fatigue load limit - Pu - 0.335 kN

Limiting speed - 4300 r/min

Weight - 0.871 kg

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m
