Concentra bearing units SYNT 75 FTS

Bearing number : SYNT 75 FTS

Size (mm) : 75x90x71

Brand : SKF

Bore Diameter (mm) : 75

Outer Diameter (mm) : 90

Width (mm) : 71

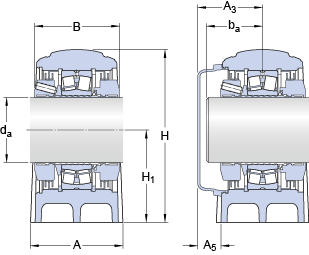

Bearing dimensions and specification in SKF catalogue:

da - 75 mm

A - 90 mm

B - 71 mm

H - 180 mm

H1 - 95 mm

H2 - 32 mm

J - 260 mm

L - 320 mm

H - 28 mm

N1 - 22 mm

J6 - 292 mm

J7 - 32.5 mm

N4 - max. - 8 mm

A3 - 80 mm

A5 - 38.5 mm

ba - min. - 38 mm

ba - max. - 70 mm

Basic dynamic load rating - C - 212 kN

Basic static load rating - C0 - 240 kN

Fatigue load limit - Pu - 26.5 kN

Limiting speed - 3300 r/min

Calculation factor - e - 0.22

Calculation factor - Y1 - 3

Calculation factor - Y2 - 4.6

Diameter - dm - 102.5 mm

Basic Designation bearing - 22215 E

Pa - 25 kN

P0° - 370 kN

P55° - 415 kN

P90° - 250 kN

P120° - 165 kN

P150° - 150 kN

P180° - 220 kN

Mass bearing unit - 12 kg

Diameter - G - 20 mm
