Concentra bearing units SYNT 55 F

Bearing number : SYNT 55 F

Size (mm) : 55x70x65

Brand : SKF

Bore Diameter (mm) : 55

Outer Diameter (mm) : 70

Width (mm) : 65

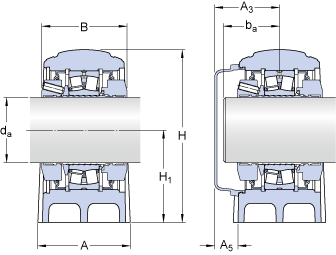

Bearing dimensions and specification in SKF catalogue:

da - 55 mm

A - 70 mm

B - 65 mm

H - 137 mm

H1 - 70 mm

H2 - 30 mm

J - 210 mm

L - 255 mm

H - 24 mm

N1 - 18 mm

J6 - 234 mm

J7 - 26 mm

N4 - max. - 8 mm

A3 - 66 mm

A5 - 34 mm

ba - min. - 34 mm

ba - max. - 55 mm

Basic dynamic load rating - C - 125 kN

Basic static load rating - C0 - 137 kN

Fatigue load limit - Pu - 13.7 kN

Limiting speed - 3100 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Diameter - dm - 77.5 mm

Basic Designation bearing - 22211 E

Pa - 15 kN

P0° - 210 kN

P55° - 350 kN

P90° - 210 kN

P120° - 140 kN

P150° - 120 kN

P180° - 150 kN

Mass bearing unit - 6 kg

Diameter - G - 16 mm
