Concentra bearing units SYNT 45 FTS

Bearing number : SYNT 45 FTS

Size (mm) : 45x60x65

Brand : SKF

Bore Diameter (mm) : 45

Outer Diameter (mm) : 60

Width (mm) : 65

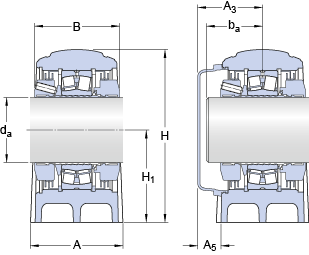

Bearing dimensions and specification in SKF catalogue:

da - 45 mm

A - 60 mm

B - 65 mm

H - 118 mm

H1 - 60 mm

H2 - 25 mm

J - 170 mm

L - 205 mm

H - 20 mm

N1 - 15 mm

J6 - 185 mm

J7 - 21 mm

N4 - max. - 6 mm

A3 - 52 mm

A5 - 23 mm

ba - min. - 34 mm

ba - max. - 43 mm

Basic dynamic load rating - C - 102 kN

Basic static load rating - C0 - 98 kN

Fatigue load limit - Pu - 10.8 kN

Limiting speed - 5400 r/min

Calculation factor - e - 0.26

Calculation factor - Y1 - 2.6

Calculation factor - Y2 - 3.9

Diameter - dm - 65 mm

Basic Designation bearing - 22209 E

Pa - 15 kN

P0° - 170 kN

P55° - 280 kN

P90° - 170 kN

P120° - 110 kN

P150° - 100 kN

P180° - 115 kN

Mass bearing unit - 4 kg

Diameter - G - 12 mm
