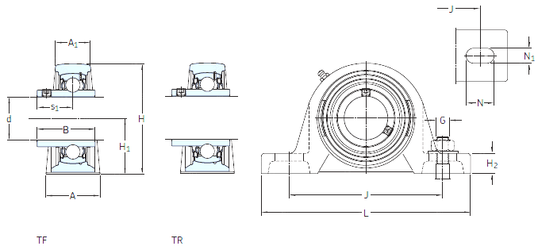

Bearing number : SYM 1.3/4 TF
Brand : SKF
Bore Diameter (mm) : 44,45
d - 44,45 mm
s1 - 32,6 mm
A - 54 mm
A1 - 34 mm
B - 51,6 mm
G - 16 mm
H - 114 mm
H1 - 57,2 mm
H2 - 22 mm
J - 157 mm
L - 203 mm
N - 26 mm
N1 - 18 mm
Weight - 3,05 Kg
Basic dynamic load rating (C) - 35,1 kN
Basic static load rating (C0) - 23,2 kN
Fatigue load limit (Pu) - 0,98
Limiting speed - 4 000 r/min
