Y-bearing plummer block units SYM 1.15/16 TF

Bearing number : SYM 1.15/16 TF

Size (mm) : 49.213x60x36

Brand : SKF

Bore Diameter (mm) : 49,213

Outer Diameter (mm) : 60

Width (mm) : 36

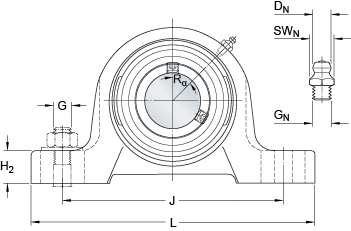

Bearing dimensions and specification in SKF catalogue:

d - 49.213 mm

A - 60 mm

A1 - 36 mm

B - 55.6 mm

H - 128.5 mm

H1 - 63.5 mm

H2 - 24 mm

J - 171.5 mm

J - max. - 181 mm

J - min. - 162 mm

L - 219 mm

H - 27.5 mm

N1 - 18 mm

s1 - 33.4 mm

J6 - 201 mm

J7 - 21 mm

N4 - 3 mm

DN - 6.579 mm

SWN - 11.112 mm

GN - 1/8-27 NPT

RG - 1/8-27 NPT

R1 - 4 mm

Rα - 45 °

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C0 - 29 kN

Fatigue load limit - Pu - 1.2 kN

Limiting speed - 3600 r/min

Weight - 3.85 kg

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m
