Bearing units SYK 35 TR

Bearing number : SYK 35 TR

Brand : SKF

Bore Diameter (mm) : 35

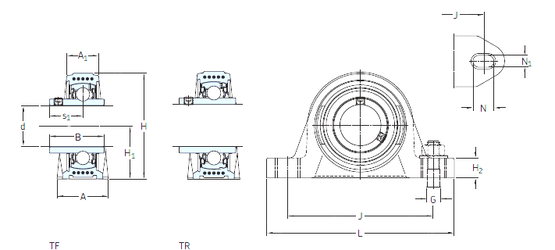

Bearing dimensions and specification in SKF catalogue:

d - 35 mm

s1 - 25,4 mm

A - 45 mm

A1 - 27 mm

B - 42,9 mm

G - 12 mm

H - 93 mm

H1 - 47,6 mm

H2 - 19 mm

J - 126 mm

L - 164 mm

N - 21,5 mm

N1 - 14,5 mm

Weight - 0,66 Kg

Basic dynamic load rating (C) - 25,5 kN

Basic static load rating (C0) - 15,3 kN

Fatigue load limit (Pu) - 0,655

Limiting speed - 3 200 r/min
