Y-bearing plummer block units SYK 35 TF

Bearing number : SYK 35 TF

Size (mm) : 35x45x27

Brand : SKF

Bore Diameter (mm) : 35

Outer Diameter (mm) : 45

Width (mm) : 27

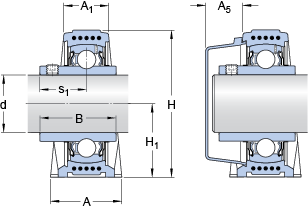

Bearing dimensions and specification in SKF catalogue:

d - 35 mm

A - 45 mm

A1 - 27 mm

A5 - 22 mm

B - 42.9 mm

H - 93.5 mm

H1 - 47.6 mm

H2 - 19 mm

J - 126 mm

J - max. - 133 mm

J - min. - 119 mm

L - 164 mm

H - 21.5 mm

N1 - 14.5 mm

s1 - 25.4 mm

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C0 - 15.3 kN

Fatigue load limit - Pu - 0.655 kN

Limiting speed - 5300 r/min

Weight - 0.65 kg

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m
