Bearing units SYK 20 TR

Bearing number : SYK 20 TR

Brand : SKF

Bore Diameter (mm) : 20

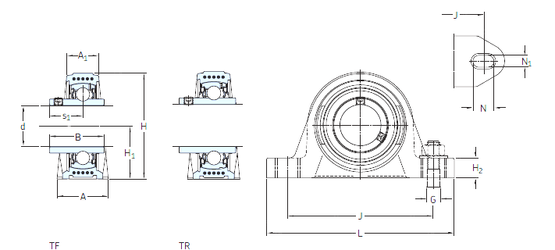

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

s1 - 18,3 mm

A - 32 mm

A1 - 21 mm

B - 31 mm

G - 10 mm

H - 64 mm

H1 - 33,3 mm

H2 - 16 mm

J - 96 mm

L - 126 mm

N - 17,5 mm

N1 - 12 mm

Weight - 0,24 Kg

Basic dynamic load rating (C) - 12,7 kN

Basic static load rating (C0) - 6,55 kN

Fatigue load limit (Pu) - 0,28

Limiting speed - 5 000 r/min
