Bearing units SYJ 25 KF+SYJ 505

Bearing number : SYJ 25 KF+SYJ 505

Brand : SKF

Bore Diameter (mm) : 20

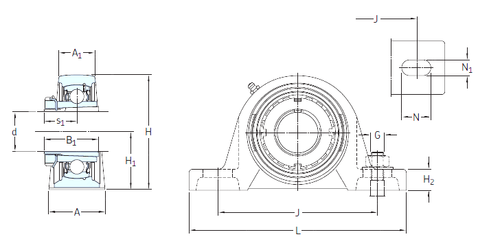

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

s1 - 20 mm

A - 38 mm

A1 - 24 mm

B1 - 35 mm

G - 12 mm

H - 70,5 mm

H1 - 36,5 mm

H2 - 16 mm

J - 102 mm

L - 140 mm

N - 21,5 mm

N1 - 13 mm

Weight - 0,63 Kg

Basic dynamic load rating (C) - 14 kN

Basic static load rating (C0) - 7,8 kN

Fatigue load limit (Pu) - 0,335

Limiting speed - 7 000 r/min
