Y-bearing plummer block units SYJ 25 KF

Bearing number : SYJ 25 KF

Size (mm) : 20x25x38

Brand : SKF

Bore Diameter (mm) : 20

Outer Diameter (mm) : 25

Width (mm) : 38

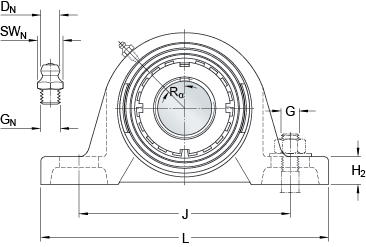

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

d - 25 mm

A - 38 mm

A1 - 24 mm

B1 - 35 mm

H - 70 mm

H1 - 36.5 mm

H2 - 16 mm

J - 102.5 mm

J - max. - 111 mm

J - min. - 94 mm

L - 140 mm

H - 21.5 mm

N1 - 13 mm

s1 - 20.5 mm

J6 - 130 mm

J7 - 14 mm

N4 - 4 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 2 mm

Rα - 45 °

Basic dynamic load rating - C - 14 kN

Basic static load rating - C0 - 7.8 kN

Fatigue load limit - Pu - 0.335 kN

Limiting speed - 7000 r/min

Weight - 0.89 kg
