Bearing units SYH 2. WF

Bearing number : SYH 2. WF

Brand : SKF

Bore Diameter (mm) : 50,8

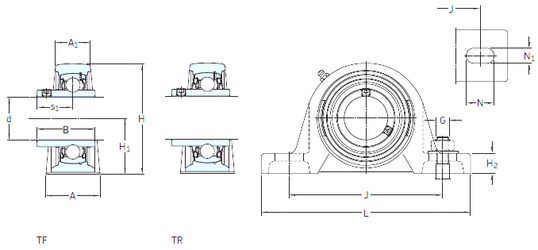

Bearing dimensions and specification in SKF catalogue:

d - 50,8 mm

s1 - 43,6 mm

A - 60,4 mm

A1 - 40 mm

B1 - 71,4 mm

H - 126,5 mm

H1 - 61,9 mm

H2 - 23,3 mm

J - 171,5 mm

L - 219 mm

N - 27,5 mm

N1 - 18 mm

Thread (G) - 16

Weight - 4,2 Kg

Basic dynamic load rating (C) - 43,6 kN

Basic static load rating (C0) - 29 kN

Fatigue load limit (Pu) - 1,25

Limiting speed - 3 600 r/min
