Bearing units SYH 1. WF

Bearing number : SYH 1. WF

Brand : SKF

Bore Diameter (mm) : 25,4

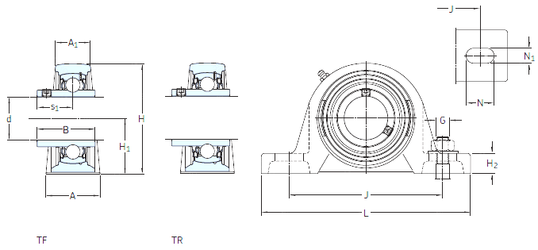

Bearing dimensions and specification in SKF catalogue:

d - 25,4 mm

s1 - 26,9 mm

A - 36 mm

A1 - 22 mm

B1 - 44,4 mm

H - 67 mm

H1 - 33,4 mm

H2 - 12,9 mm

J - 102 mm

L - 130 mm

N - 19,5 mm

N1 - 11,5 mm

Thread (G) - 10

Weight - 0,79 Kg

Basic dynamic load rating (C) - 14 kN

Basic static load rating (C0) - 7,8 kN

Fatigue load limit (Pu) - 0,335

Limiting speed - 7 000 r/min
