Bearing SYH 1.3/8 WF

Bearing units SYH 1.3/8 WF

Bearing number : SYH 1.3/8 WF

Brand : SKF

Bore Diameter (mm) : 34,925

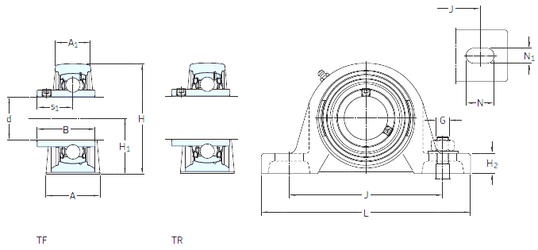

Bearing dimensions and specification in SKF catalogue:


d - 34,925 mm

s1 - 32,3 mm

A - 45 mm

A1 - 27 mm

B1 - 51,1 mm

H - 91,5 mm

H1 - 46,1 mm

H2 - 17,5 mm

J - 126 mm

L - 160 mm

N - 21 mm

N1 - 14 mm

Thread (G) - 12

Weight - 1,8 Kg

Basic dynamic load rating (C) - 25,5 kN

Basic static load rating (C0) - 15,3 kN

Fatigue load limit (Pu) - 0,655

Limiting speed - 5 300 r/min
