Bearing number : SYH 1.15/16 TF
Brand : SKF

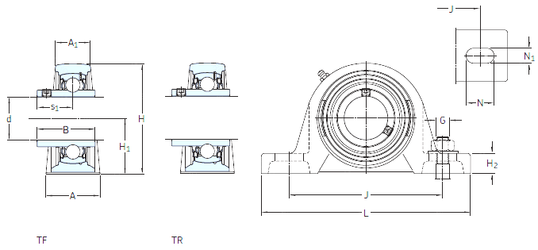

Bore Diameter (mm) : 49,212
d - 49,212 mm
s1 - 32,6 mm
A - 54 mm
A1 - 34 mm
B - 51,6 mm
G - 16 mm
H - 113,5 mm
H1 - 55,6 mm
H2 - 21,4 mm
J - 157 mm
L - 203 mm
N - 26 mm
N1 - 18 mm
Weight - 2,9 Kg
Basic dynamic load rating (C) - 35,1 kN
Basic static load rating (C0) - 23,2 kN
Fatigue load limit (Pu) - 0,98
Limiting speed - 4 000 r/min
