Y-bearing short base plummer block units SYFWR 20 YTHR

Bearing number : SYFWR 20 YTHR

Size (mm) : 20x29x23

Brand : SKF

Bore Diameter (mm) : 20

Outer Diameter (mm) : 29

Width (mm) : 23

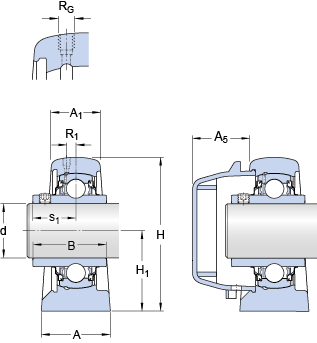

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

A - 29 mm

A1 - 23 mm

A5 - 25.2 mm

B - 31 mm

H - 63.5 mm

H1 - 33.3 mm

J - 50.8 mm

L - 66.5 mm

s1 - 18.3 mm

RG - 1/4-28 UNF

R1 - 1.5 mm

Rα - 45 °

Basic dynamic load rating - C - 10.8 kN

Basic static load rating - C0 - 6.6 kN

Fatigue load limit - Pu - 0.28 kN

Limiting speed - 5000 r/min

Calculation factor - f0 - 13

Weight - 0.47 kg

Thread - G - M10

Thread length - G1 - 13 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWR 504 Y

Bearing - YAR 204-2RFGR/HV

End cover -
