Y-bearing short base plummer block units SYFWR 1.1/2 YZTHR

Bearing number : SYFWR 1.1/2 YZTHR

Size (mm) : 38.1x41x33

Brand : SKF

Bore Diameter (mm) : 38,1

Outer Diameter (mm) : 41

Width (mm) : 33

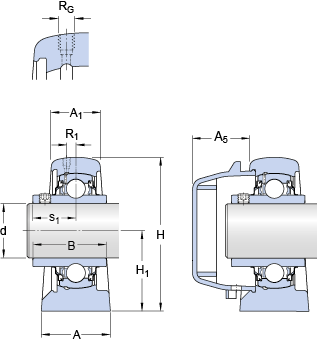

Bearing dimensions and specification in SKF catalogue:

d - 38.1 mm

A - 41 mm

A1 - 33 mm

A5 - 32 mm

B - 49.2 mm

H - 100 mm

H1 - 49.2 mm

J - 88.9 mm

L - 114.5 mm

s1 - 30.2 mm

RG - 1/4-28 UNF

R1 - 3.5 mm

Rα - 45 °

Basic dynamic load rating - C - 26 kN

Basic static load rating - C0 - 19 kN

Fatigue load limit - Pu - 0.8 kN

Limiting speed - 2800 r/min

Calculation factor - f0 - 14

Weight - 1.9 kg

Thread - G - M12

Thread length - G1 - 19 mm

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m

Housing - SYFWR 508 Y

Bearing - YAR 208-108-2RFGR/HV

End cover -
