Bearing number : SYFWK 35 LTHR
Size (mm) : 35x48x32.5
Brand : SKF
Bore Diameter (mm) : 35
Outer Diameter (mm) : 48
Width (mm) : 32,5

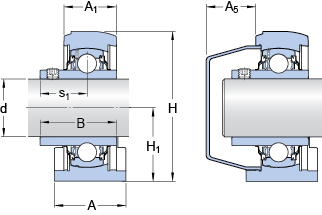

d - 35 mm
A - 48 mm
A1 - 32.5 mm
B - 42.9 mm
H - 95 mm
H1 - 47.6 mm
J - 82.6 mm
L - 110 mm
s1 - 25.4 mm
Basic dynamic load rating - C - 21.6 kN
Basic static load rating - C0 - 15.3 kN
Fatigue load limit - Pu - 0.655 kN
Limiting speed - 3200 r/min
Calculation factor - f0 - 14
Weight - 0.73 kg
Size thread - G - M10
Thread length - G1 - 12 mm
Hexagonal key size for grub screw - H - 3 mm
Recommended tightening torque for grub screw - 4 N·m
Housing - SYFWK 507 L
Bearing - YAR 207-2RFGR/HV
End cover - ECL 207
